Roman Shades with a Shaped Bottom

A couple weeks ago I shared a picture of a Roman shade I made with a shaped bottom, I promised a tutorial and here it is.

Shaped Roman Shades take longer to make than regular Romans, but they are totally worth it!

I construct them completely different then regular Romans, so if you're looking for a tutorial for regular Romans I don't suggest this one.  I'll do a tutorial for those soon.

First you have some decision making to do.

1.  Will your shade be mounted inside the window frame or outside the molding?

2.  What shape do you want for the bottom of your shade?

You can do any shape you want as long as you can draw it.  I do not suggest shapes with sharp corners, but they are do-able.  Keep in mind that the cut out parts of your shade will expose the bottom part of your window when they are completely lowered.  I usually add a few extra inches to the bottom of the shade and allow it to hang down below the bottom of the window sill.

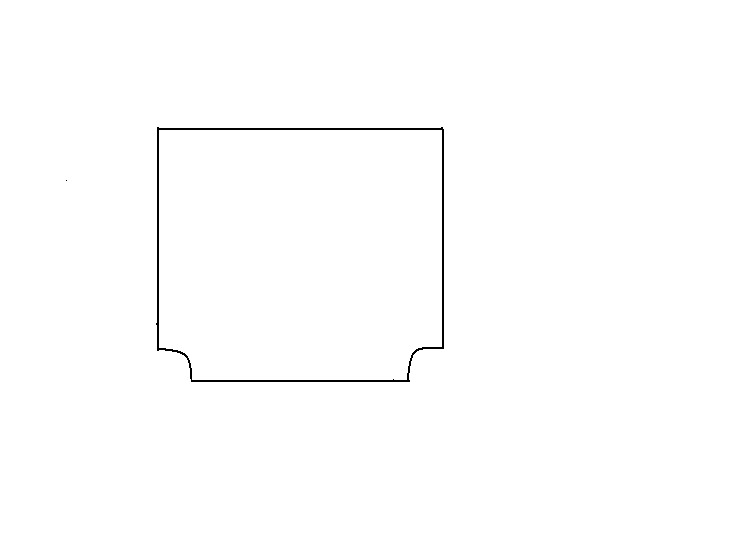

Here's the shape we are doing today.

Unfortunately my drawing on the computer is not as good as my drawing with actual pencil and paper, but you get the drift .

Now that you have measured your window and decided what shape to do, lets figure our cuts and draw our pattern shape.

To cut the face of your roman, add 4" to the finished width and 7" to the length.  This number already includes extra to hang past the bottom of your window because of the cut outs.

To cut your lining, cut the width the exact finished width of your shade and add 9 1/2" to the length.

Cut a Facing out of your face fabric.  Cut this facing 2" wider then your finished width and 8" long.

Now it's time to test your drawing skills.  You need to make a pattern piece for your shaped bottom.  You'll need a large piece of paper.  You can use butcher paper, craft paper, news paper, wrapping paper etc.

Draw a rectangle the width of your finished shade x 8" long.  Now add 1" to each side of your finished width.

Since my shape is going to be quarter circles, I decided how far up and over I wanted the cutouts, 3".  So I measured up and over from the bottom corners and made marks at 3 inches.

Using a round 6" template, I drew my circle cut outs.

Since you will probably be doing a different shape then mine, here's what I suggest.  Once you have your rectangle with the 1" sides added, fold your paper pattern in half width wise and crease the fold well.  Draw your shape on only half of the pattern, on either side of the fold line.  Once you have half your pattern perfected, fold the paper back along the crease and cut it out.  This will ensure both sides are symmetrical.

Set aside the pattern for now.

Step 1.  Side Hems-  Fold and press double 1" hems along both sides of your face fabric.  Lightly pin and set aside.

Step 2.  Weight Bar Pocket-  With wrong sides of your lining together press a fold 9 1/2" up from the bottom of your lining.  Pin.  Stitch 1 1/4" from the fold forming a pocket.

Step 3.  Joining the lining to the face-  Lay the front of your shade right side down on a flat surface.  Unpin and open out side hems.  Lay lining wrong side down on top of the shade aligning the bottom edges.

Fold the side hems back over the sides and pin.  Now lay your facing piece right side down along the bottom edge.  Align the 3 layers at the bottom.  The facing should extend 1" past the side hems of the face of the shade.  Pin through all three layers at the bottom.

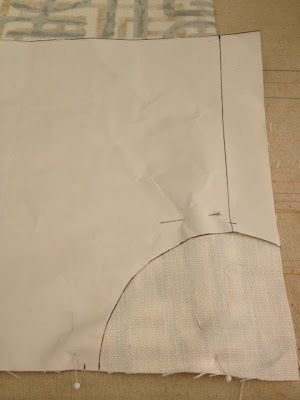

Step 4.  Making the shaped bottom-  Lay your pattern piece down on top of the facing, lining up all the edges.  Using a pen or pencil, trace the shape onto the back of your facing piece.



Cut out the shape through all thicknesses of fabric.  Make sure you pin it really well to keep the layers from slipping around.

Stitch along the bottom edge 1/2" from the raw edge of your shaped bottom edge.  Keep the double side hems of the face folded and pinned and stitch right through them.

TIP:  If your shape is really curvy, use a really small stitch length, this helps to make smooth curves.

Clip the corners if any and clip into the curves making sure you do not clip past the stitching.

I clipped into my curves, but you can hardly see it in the picture above.

Step 5.  Turning and Pressing-  Turn your facing right side out and press really well.  Try to press your shape really well.  You also want to try to make sure your facing does not show from the front of the shade, but if it does, it won't show too badly because we cut the facing out of the same fabric as the face.

Press under a 1" hem along the top of the facing.  This fold should land right below the weight pocket.  Press a little more or a little less if needed to get that fold right below the weight pocket.

Fold under and press an inch hem on the sides of the facing.  I take mine in slightly from the side edge of my shade to ensure they don't show from the front or side view.

Hand stitch the facing side hems to the back of the shade side hems.  Blind stitch the upper edge of the facing to the lining only, making sure you do not catch the face fabric or the weight pocket in your stitches.

Step 6.  Marking for rings-  Using a clear ruler, make small dots where the rings will be sewn on the back of your shade.  The side rings will be 3/4" from the side hem.  The first ring at the bottom will be 8" up.  I put that bottom ring at 8" from the bottom so that the bottom 3" of the shade will always show when the shade is drawn up.  My cutouts are 3" up from the bottom and I want that shape to always show, the additional 5" is where the shade will fold on itself when drawn up.  If your shape comes up higher than 3", then add however many inches to 5" and this is where you should place your bottom rings.  The rings are spaced every 6" after that going up from the bottom.

Once you have these side ring placement dots marked,  pin through the dots diagonally.

Now for the horizontal ring placement.  I measure between the lower side dots (should be 1 1/2" less then your finished width)  Take this number and divide it until you get a number between 10 and 12.  This is how far apart those horizontal rings are going to be.  I prefer to keep my rings around 9-10 inches apart.

I use a long metal ruler.  I put small pieces of painters tape at every division where a dot should go to help me visually.  Lay the ruler level along the bottom ring dots.  I lay it just below the dots and mark the dots right at the rulers edge.

See my blue painters tape at every interval where I plan to make a dot?  Mark your horizontal dots at these intervals.  It doesn't matter if they are not perfectly divided, what matters is that the are the same going all the way up the shade.  Once you have the horizontal row of dots made at the bottom row, move up 6" and do the same for the second row and so on.

Step 7.  Color coding-  If you are using a solid color fabric, you can skip this step.  If you are using a patterned fabric with different colors throughout, you will not want your rings sewn on with one color because you don't want your stitching to show and attract the eye.  I try to color coordinate my pins to the color of thread each ring will require.  For instance, my fabric had 3 colors in it- cream, tan, and grey.  So I used white pins to signify the cream parts of the fabric, yellow pins to signify the tan parts and silver pins to signify the grey.  I hope you're all still with me!  I know it sounds complicated, but it will make sense soon!

At each dot(ring placement) I put a pin through the layers of fabric.



Then I carefully lift up the fabric to see what color it lands on.

The one above landed on the cream part of the fabric, so on the dot side, I knew that I needed to use a white pin to pin diagonally through it.  Make sure you pin through both layers.

Put the appropriate pin through all the dots in this manner.

Step 8.  Sewing the rings-I know there are tapes available out there that have rings already sewn on them, but I don't recommend them.  I recommend using individual rings.  You want to be careful if you buy plastic ones that they are UV rated, otherwise they will rot from the sun.  If using metal rings, be sure that if you live where there is a lot of moisture that your rings will not rust.

Set your sewing machine to stitch a wide zigzag stitch.  Now raise the throat plate on your machine.  What this does is it disengages the feed dogs from feeding the fabric through the machine and your zig zag stitch will now go back and forth over and over in the same spot....which is exactly what we want to sew the rings on.

If you have different color pins to stitch, like I do, figure out which color of thread has the most rings to be sewn.  Find a matching thread color and wind a full bobbin with this color.  Your bobbin thread will be the thread that will show on the front of your shade.  Your upper thread should match your lining.

Once you have your machine threaded, prepare the needle so that when it is going to go down, it is going down to the right.

Slide your shade under the presser foot and line up the dot to be centered under the opening on the presser foot.  Lower your needle to the right and pause.

Now slip the pin out and place a ring up against the needle.

Stitch over the ring many times.  Not so much that on the front side you have this big mound of thread, but not so little that the thread can come undone either.  Don't clip the thread, simply raise the presser foot and shift the fabric to the next ring to be sewn and continue attaching rings.  This will leave what is called thread tails between the rings.  We will cut them when we are all done.

When all of the first thread colored rings are sewn, change your bobbin color and continue to sew the remaining rings.

Once all the rings are sewn, clip the thread tails between the rings.

Step 9.  Trim-  My shaped Roman has a flat trim that is to be placed 1 1/4" from the edge, so you can skip this step.  But if you are deciding to put trim on your shade too, here's how I do it.

With a pencil and clear ruler, draw a faint line 1 1/4" from the straight side edges.  Make sure you stop 1 1/4" from the lower shaped edge.

At the curved edge I use a hem gauge to help me form the placement line.  I make several small lines each time I measure in from the curved edge with the hem gauge.

After you have several little lines, just connect them like dot to dots.

Now we're ready to glue the trim on.  I normally don't glue trims on a lot of my work, I usually top stitch trim. However, top stitching trim at this point would mean stitching through the lining and that would look unprofessional.  So glue it is.  I use a glue that is specifically meant for gluing trim to fabrics.  You can use any fabric glue you wish as long as it dries clear.

Lay a section of trim right side down and run a thin row of glue down each side of the trim edge.

Place the trim right along the pencil placement line you drew.  Put a few pins here and there to hold it in place while it dries.

Continue to glue the trim to the side and bottom edges, following the shape.  Miter any sharp corners you may have.

Let the glue dry for about 15-20 minutes and then remove the pins.

Step 10.  Tabling the Top of the shade-You may have excess fabric in the length of your shade, so now we need to measure and cut off any excess.  Finished shade length+extra 3" for the bottom to show+mounting board width=length to cut your shade down to.   My shade is to finish at 37 1/2"+3"+1 1/2"=42"

Measure and mark 2-3 times across the top edge.  Draw a line and cut the excess off the top.  Serge or zig zag across the top edge to keep it from fraying.

Step 11.  Mounting-My shade will finish at 30 1/4" wide.  I mounted my shade on a 3/4"x3/4" board since it was going to be inside mounted and there was not a lot of room inside the casing of the window.  I suggest either a 3/4"x3/4" board or a 1"x2" board.  I cut my board 1/4" smaller then the finished width to ensure it will always fit inside the window casing.
Cut a piece of scrap lining a couple inches longer then your board and wide enough to wrap around your board.  I cut mine 3 3/4"x33 1/4".
Cover your board with the lining following the directions you will find here

Lay your shade face side down and staple the top of the shade to your board, extending the shade 1/8" past the board ends. (because we cut the board 1/4" smaller remember?)

Step 12.  Weight bar-I use cafe curtain rods for the weight bars in the bottom of my shades.  You could use wood slats, but if moisture is an issue, color from the wood could soak through to your fabric.  Cut your weight bar 1" smaller then the width of your shade.

I usually in case my weight bar in a fabric tube made out of scrap lining, but you don't have to do this.
Open out a side hem where the weight bar pocket is and slip the weight bar in the pocket.  Fold the side hem back over the shade.

Step 13.  Screw eyes and Stringing- Place screw eyes on the under side of your board exactly straight up from the rings on the shade.  I usually measure over on the board and make a small dot for screw eye placement.

Once you have all your screw eyes on your board, now it's time to string.  First you need to decide which side of the shade you want your pull cord to be.
I start from the opposite side of the pull cord.  String your roman shade cord through the bottom ring and thread it up the shade and then through all the screw eyes and back down the side of your shade leaving extra as a tail for the pull cord.  Clip a few inches below the bottom ring.

Continue stringing in this manner all the way across your shade.  Tie triple knots around the bottom rings and dab with a little bit of glue to ensure they will never come untied.

Step 14.  Finishing the Shade-  Now hold your shade up with the lining facing you and pull the shade up and down getting the slack out of the cords.  Knot the cords together an inch or two below the last screw eye.  My picture shows a lock cleat instead of a screw eye because the client wanted them to lock, but I don't suggest beginners mess with lock cleats.  Even I have a hard time getting them strung correctly sometimes.

Separate your cords and braid.  I had 4 cords, so my three braiding sections had 1 cord on the sides and two cords in the middle.

When you get to within 4" of the ends of the cord, knot again and trim the bottoms of the cords evenly.

Your dabs of glue on the knots at the bottom rings should be dry by now, go back and clip close to the knots.

If your shade is wrinkled at all, give it a good pressing.
You're ready to mount your shade to your window.  For inside mount- screw directly through the shade board up into the top casing.  For outside mount-attach small "L" brackets above your window, set the shade on top of the "L" brackets and screw through the "L" bracket into the bottom of your shade board.
You'll need to attach a cord cleat to the side of the wall or window frame to tie your cord around when it is drawn up.

Your new roman shade will not draw up and down perfectly the first several times.  I suggest drawing it up, straightening out all the folds and leaving it drawn up for several days.  Fabric has memory and it will eventually start to remember where it is suppose to fold when drawn up.

Here's what my finished shade looked like.  This one was for a client, so I don't have a picture of it installed in the window.

Beautiful huh?!
